E-Series 25RUD

Rear U-Shaped Dinette

Tandem Axle

Gather, dine, relax, and entertain in the 25RUD, highlighted by its large U-shaped dinette that provides dining, sleeping, and storage versatility. Theater seating, a well-equipped kitchen, and a walk-around 60" x 80" queen bed in the private front bedroom with separate entrance make this spacious couples coach equally comfortable for everyday camping or entertaining guests.

Sleeps 2-4
MSRP starting at $54,284
Build & Price

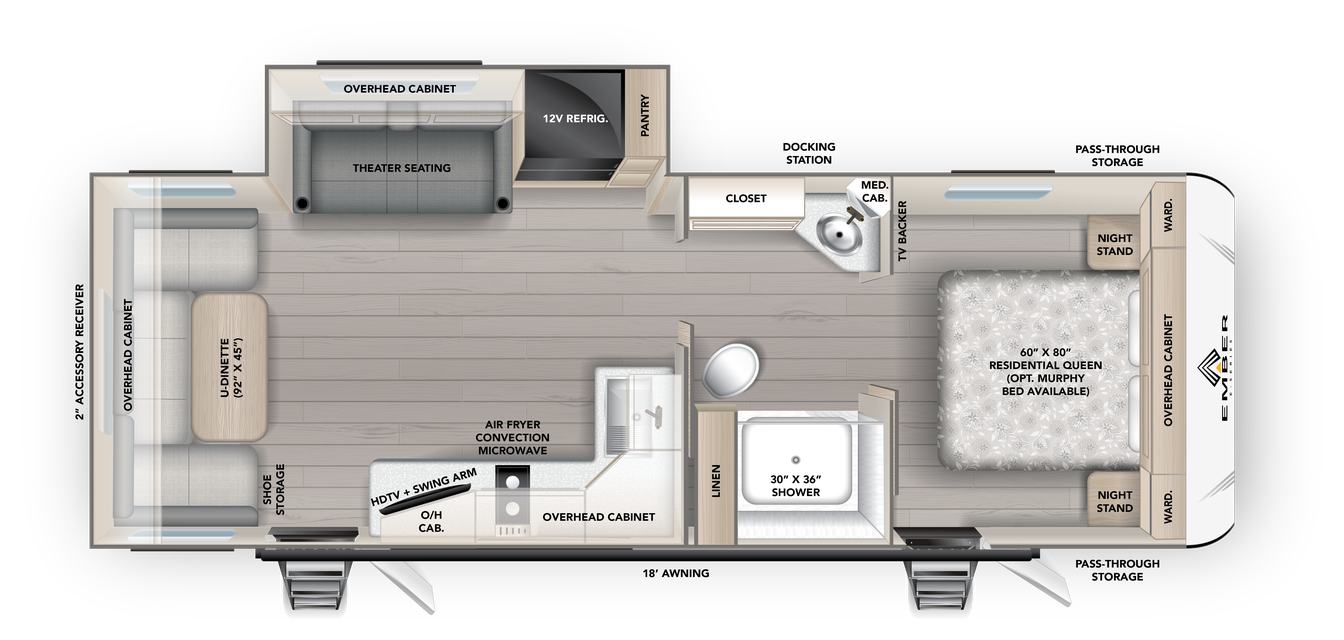

Floorplan image for 25RUD

Specs

Exterior Length (overall)
30'1"
Exterior Height (with A/C)
11'2"
Exterior Width
96"
Awning Length
19'
Spec Diagram
Hitch Weight (lbs)
705
Dry Weight (lbs)
5,780
Cargo Carrying Capacity (lbs)
1,815
Gross Vehicle Weight Rating (lbs)
7,595
Spec Diagram
Fresh Water Capacity (gals)
55
Gray Water Capacity (gals)
70
Black Tank Capacity (gals)
35
Propane Unit/LP Gas Capacity (lbs)
N/A
Sleeps
2-4
Tire Size
15"

Features

Key Features

  • 18,000 BTU Chill Cube A/C (Largest Single A/C in Class) with Heat Pump and Remote
  • Goodyear Endurance® Tires (Made in the U.S.A.)
  • Laminated Axdel Onboard® Composite Walls
  • Best-in-Class 82" Ceiling Height
  • Walk-around True Residential Queen Size 60" x 80" Front Bed (vs. "RV Queen)
  • Massive U-Dinette Booth (92" X 25") provides Dining, Sleeping, and Storage Space
  • Congoleum® DiamondFlor® "Carpetless" Interior
  • Standard Wall-hugger Theater Seating
  • Air Fryer Convection Microwave
  • Seamless Countertop with Stainless Steel Kitchen Sink and Pull-out Sprayer Faucet
  • EmberLink™ "Smart RV" system controls Slide Room, Awning, and Lighting
  • XL 55 gal. Fresh, 70 gal. Gray & 35 gal. Black Tanks
  • Optional Off-grid Solar Package with (2) 200W Rooftop Panels (400W total), 2000W Inverter, and Victron® MPPT Solar Controller with PV Disconnect
  • Sleeps 2-4
  • Laminated Azdel Onboard® Composite Walls
  • Optional Off-grid Solar Package with 400W Rooftop Panel(s), 2,000W Inverter, and Victron® MPPT Solar Controller with PV Disconnect

Construction Features

  • Laminated Azdel® Composite Walls
  • Best-in-Class 82" Ceiling Height
  • Aluminum-framed Sidewall Construction
  • Gel-coated Fiberglass Exterior
  • Fully Walkable Roof with One-piece Tufflex® PVC Roofing (Lifetime Warranty)
  • Dexter® Axles with E-Z Lube Hubs and Forward Self-Adjusting Electric Brakes
  • Upgraded Plumbing: Water Management System, Prefabricated Flex Hoses, PEX Specialty Connectors, & Inline Shut-off Valves at all Faucets and Toilet

Interior Features

  • 18,000 BTU Furrion Chill Cube Air Conditioner (Largest Single A/C in Class) with Heat Pump and Remote Control
  • 60" x 80" Residential-Sized Queen Bed with USB-A, USB-C, and 120V Powered Cubbies with LED Lights on Each Side
  • EmberLink™ Smart RV Control System
  • 10.6 cu. ft. 12V Refrigerator
  • Air Fryer Convection Microwave
  • 32" Smart HDTV
  • Emersyn Décor with Painted Hardwood Doors and Drawers in Kitchen and Bath
  • Soft Close Hardwood Maple Cabinet Doors with Hidden Hinges and Magnetic Latches
  • Soft Close Maple Hardwood Drawers
  • Roller Shades
  • 12V Multi-speed Fan (Main Room)
  • Seamless Countertops
  • Stainless Steel Kitchen Sink with Pull-out Sprayer Faucet
  • Dual-burner LP Cooktop
  • Dimmable Interior LED Lighting
  • Congoleum® DiamondFlor® "Carpetless" Interior

Exterior Features

  • 15" Goodyear Endurance® Load Range E Radial Tires (including spare; Made in the USA!)
  • Blacked-out Aluminum Rims
  • Composite MORryde StepAbove® Steps (Made in the USA)
  • Slam-Latch Baggage Doors
  • Electric Awning with Dimmable LED Light
  • Front Electric Tongue Jack with LED Light
  • Built-In 7-Way Cable Holder
  • Front and Rear Quick Drop™ Stabilizers
  • High-Visibility LED Exterior Lighting
  • Back-Up Lighting
  • Thermostatically-controlled 12V Tank Heaters (all tanks)
  • Fully-Enclosed Radiant Barrier Underbelly
  • Dual 20# LP Tanks (40# total capacity)
  • LP Quick Connect
  • 30 Amp Service
  • Detachable Shore Power Cord
  • Battery Disconnect
  • Outside Shower
  • Black Tank Flush
  • 30" Friction-Hinge Entrance Door
  • Frame-Integrated Rear 2" Accessory Receiver (300# capacity)
  • Repositionable/Telescoping Roof Ladder + Rear-Mounted Bracket
  • Winegard Air 360+ Omnidirectional Antenna (Wi-Fi/LTE Prep)
  • Keyed-Alike™ Locking System (N/A Bar-V Door)
  • 360 Siphon® Roof Vent Caps
  • Coiled Break-Away Cable
  • Sewer Hose Caddy

Optional Features

  • 12 cu. ft. French Door Refrigerator Upgrade (in place of Std. 10 cu. ft.)
  • Dual Twin XL Beds (with Center Wardrobe, in place of Std. Queen Bed)
  • Tire Pressure Monitoring System (TPMS)
  • Wireless Side/Rear Observation Camera System with 12V Monitor
  • 2nd 18k BTU A/C with Heat Pump and Remote Control (in place of 12V Multi-speed Fan, 24RLD, 25RUD, 26ETS only)
  • Dexter EZ-Flex Equalizer Suspension Upgrade
  • Off-Grid Solar Package: Go Power!® 400W Rooftop Solar Panel(s), 2,000W Pure Sine Wave Inverter, and Victron® MPPT Solar Controller
  • Slide Topper Awning

Build & Price

Options

12 cu. ft. French Door Refrigerator Upgrade (in place of Std. 10 cu. ft.) $594
Dual Twin XL Beds (with Center Wardrobe, in place of Std. Queen Bed) $844
Tire Pressure Monitoring System (TPMS) $244
Wireless Side/Rear Observation Camera System with 12V Monitor $1,119
2nd 18k BTU A/C with Heat Pump and Remote Control (in place of 12V Multi-speed Fan, 24RLD, 25RUD, 26ETS only) $1,094
Dexter EZ-Flex Equalizer Suspension Upgrade $244
Off-Grid Solar Package: Go Power!® 400W Rooftop Solar Panel(s), 2,000W Pure Sine Wave Inverter, and Victron® MPPT Solar Controller $1,619
Slide Topper Awning $288

Build & Price
Total: 54,284

Packages

Standard

Essentials

Features
  • Aluminum Framed Construction
  • Laminated Azdel Onboard® Composite Walls (Best-in-Class 82" Ceiling Height)
  • Goodyear Endurance Load Range 'E' Radial Tires with Custom Aluminum Rims
  • Dexter Axles with E-Z Lube Hubs and Forward Self-Adjusting Electric Brakes
  • QuickDrop™ Stabilizers
  • Electric Tongue Jack with 7-Way Cable Holder
  • Fully Walkable-Roof with Tufflex® PVC Roofing (Lifetime Warranty)
  • Repositionable/Telescoping Roof Ladder
  • 12V Multi-speed Fan with Remote
  • XL Fresh Water Tank
  • 12V Tank Heaters with Fully-Enclosed and Heated Radiant-Barrier Underbelly
  • Black Tank Flush
  • 360 Siphon® Roof Vent Caps
  • Slam-Latch Baggage Doors
  • Keyed-Alike™ Locks
  • 2" Accessory Receiver (300# Capacity)
  • Sewer Hose Caddy
  • LP Quick Connect
  • Dual 20# LP Tanks
  • Coiled Break-Away Cable
Standard

Luxury

Features
  • Variable Speed Compressor 18,000 BTU Air Conditioner with Heat Pump and Remote Control
  • 12V 10 Cu. Ft. Refrigerator
  • Stainless Steel Kitchen Sink
  • 60" x 80" Residential Queen Mattress
  • EmberLink™ Smart RV Control System
  • "On Demand" Water Heater
  • Porcelain Foot Flush Toilet
  • Electric Awning
  • Adjustable Composite Entry Stairs
  • Hardwood Doors with Hidden Hinges and Magnetic Catches
  • Soft-Close Hardwood Doors and Drawers
  • Roller Shades
  • USB-C Ports
  • Congoleum® DiamondFlor® "Carpetless" Interior
Standard

Safety First

Features
  • High-Visibility LED Exterior Lighting
  • LED Back-Up Lights
  • Smoke/CO/LP Detectors
  • Fire Extinguisher

Warranty

At Ember, durable construction and pride of craftsmanship are injected into the DNA of every single unit that we build. Our company philosophy pledges to emphasize quality over quantity every single time and that is our guiding principle in every single production decision that we make.

Warranty Document
Warranty Badge
Floorplan image for 25RUD

Find the E-Series 25RUD at a dealer
