Overland Series 191MDB

Murphy Bed & Double Bunk with Slide Out

Single Axle

The 191MDB features a slideout to create additional living space when parked. Like the 190MDB, it can sleep up to 8 people with its fold-up murphy bed plus two double bunks.

Sleeps 5-8
MSRP starting at $60,679
Build & Price Download Specs

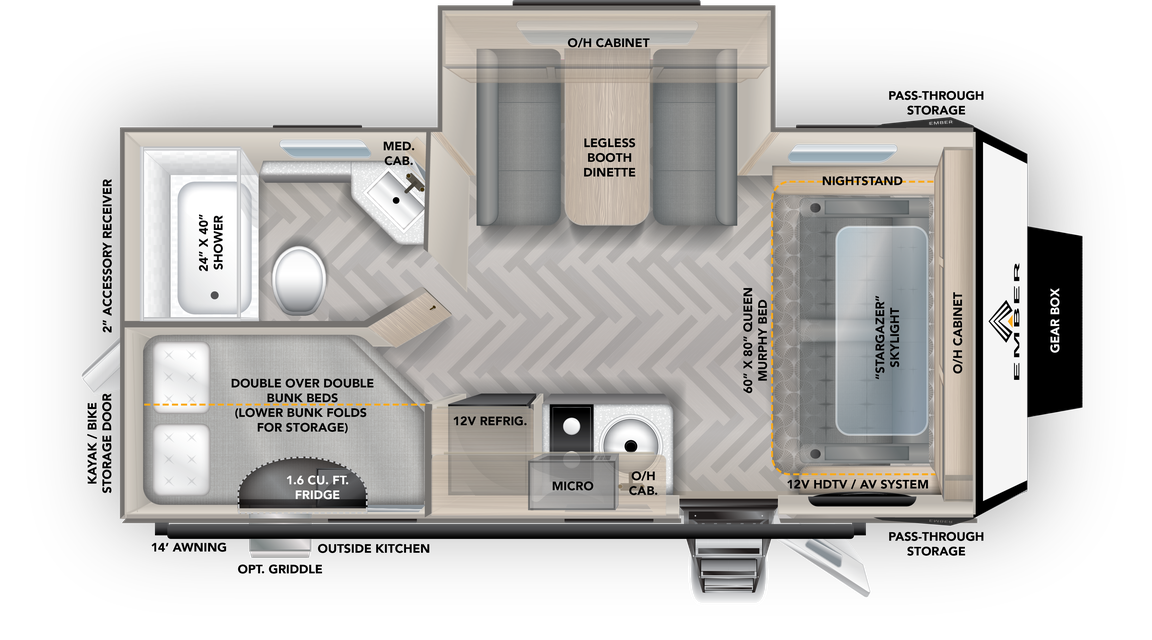

Floorplan image for 191MDB

Specs

Exterior Length (overall)
22'6"
Exterior Height (with A/C)
10'9"
Exterior Width
8'
Awning Length
14'
Spec Diagram
Hitch Weight (lbs)
605
Dry Weight (lbs)
4,860
Cargo Carrying Capacity (lbs)
1,245
Gross Vehicle Weight Rating (lbs)
6,105

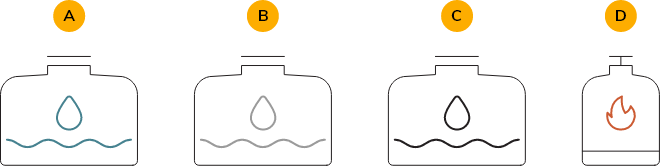

Spec Diagram
Fresh Water Capacity (gals)
55
Gray Water Capacity (gals)
35
Black Tank Capacity (gals)
35
Propane Unit/LP Gas Capacity (lbs)
40
Spec Diagram
Sleeps
5-8
Tire Size
16"

Features

Key Features

  • EmberLink™ Smart RV Control System
  • Gear Box: Tongue-Mounted, Formed Aluminum, LP and Lockable Storage Box
  • Lower Bunk folds up creating Storage below, accessible through Lockable Door
  • Outside Kitchen with 1.6 cu.ft. Fridge (room for optional Griddle)
  • Legless Booth Dinette converts to Bunk
  • CURT® Independent Suspension: Heavy-Duty Coil Springs with Dual Shock Absorbers (each wheel)
  • Double over Double size Bunks (600lb weight capacity each)

Construction Features

  • Structural Composite Flooring
  • Laminated Azdel Onboard® Composite Rooftop (inner and outer substrates)
  • Steel Fenders/Wheel Wells
  • Aluminum Bed, Bunk, and/or Dinette Construction (where applicable)
  • CURT® Independent Suspension: Heavy-Duty Coil Springs with Dual Shock Absorbers (each wheel)
  • VersaCoupler® Height-Adjustable Bolt-On Hitching System with LED Hitch Light
  • Trailblazer™ Heavy-Duty Offroad Chassis
  • 5-Sided Aluminum Frame Construction
  • Laminated Azdel Onboard® Composite Walls (inner and outer substrates)
  • Gel-coated Fiberglass Exterior

Interior Features

  • Convection Microwave/Air Fyer
  • 3-Speed 12V Powered Ceiling Vent
  • Showermi$er™ Fresh Water Saver
  • Seamless Countertops
  • Smoke / CO / LP Detectors
  • 12V LED HDTV w/ Built-In Bluetooth AV System
  • Winegard 360+ WiFi/LTE Prep
  • Porcelain Foot Flush Toilet
  • EmberLink™ Smart RV Control System
  • Dimmable Interior/Exterior LED Lighting
  • "Stargazer" Dual Pane Acrylic Skylight with Integrated Thermal Shades/Screens
  • 60" X 80" Residential-Sized Queen Bed with Bedside USB + 120V Power and LED Lighting
  • Fire Extinguisher
  • Dual-burner cooktop
  • 12V Refrigerator
  • Hardwood Framed Cabinet Doors with Self Close Hidden Hinges
  • Hardwood Framed Drawer Fronts with Soft Close Drawers
  • 2000W Pure Sine Wave Inverter
  • Medicine Cabinet with LED Backlight
  • Bathroom Skylight and 12V Fan
  • Congoleum® DiamondFlor® "Carpetless" Interior
  • Stainless Steel Kitchen Sink with Pull-Out Sprayer and Sink Cover

Exterior Features

  • 30" Friction Hinge Entrance Door with Thinshade™ Window Shade and Screen Shot™ Screen Door
  • Universal Docking Station with Outside Shower and Water Heater Bypass
  • Starlink cable prep
  • Dual Go Power!® 200W Rooftop Solar Panels (400W total)
  • Tire Pressure Monitoring System (TPMS)
  • 12V Tank Heaters
  • XL Fresh Water Tank (55 gallons)
  • Side and Rooftop Solar Ports
  • Front and Rear Quick Drop™ Stabilizers
  • Detachable Shore Power Cord
  • Keyed-Alike™ Locking System
  • Winegard Air 360+ Omnidirectional Antenna
  • Electric Awning with Dimmable LED Light
  • Fully Adjustable Triple Solid Step™
  • 30 Amp Service / 55 Amp Converter
  • Back-Up Light
  • Black Tank Flush
  • Gear Box: Tongue-Mounted, Formed Aluminum, LP and Lockable Storage Box
  • High-Visibility LED Exterior Lighting
  • Outside Kitchen with 1.6 cu.ft. Fridge (room for optional Griddle)
  • Nitro-filled 16" Goodyear Wrangler Off-Road Tires - Load Range E (including spare)
  • Dual-Pane Acrylic Caravan Windows with Integrated Thermal Shades/Screens
  • Dual 20lb LP Tanks (40lb total capacity)
  • 360 Siphon® Cap on Black Tank Vent
  • Pre-wired For Rear/Side Observation Cameras
  • Lockable Parking Brake
  • Custom Aluminum Rims (including spare)
  • Self-Adjusting Electric Brakes
  • Enclosed Radiant Barrier Underbelly
  • Frame Integrated Rear 2" Accessory Receiver (300lb capacity) (N/A 240TKR)
  • LP Quick Connect
  • Repositionable/Telescoping Roof Ladder + Rear-Mounted Bracket
  • Front Electric Jack
  • Victron® MPPT Solar Controller

Optional Features

  • (MANDATORY) Truma Combi Comfort Plus: High Efficiency LP Water Heater/Furnace Combo (Truma Gold Standard)
  • (MANDATORY) Furrion Chill Cube: Energy Efficient 18,000 BTU Air Conditioner
  • Outside Griddle (connects to LP Quick Connect)
  • Wireless Side/Rear Observation Camera System with Monitor
  • Additional 270Ah 12V Battle Born® Gamechanger Lithium-ion (LiFePO4) Battery
  • Max Solar Package: 270Ah 12V Battle Born® Gamechanger Lithium-ion (LiFePO4) Battery, 3000W Victron® Inverter (in place of 2000W) with Cerbo GX Communication Center, REDARC® DC to DC Trailer Battery Charger, Four Additional Roof-mounted 200W Solar Panels (1,200W total), Victron® Bluetooth® MPPT Controllers, Cold-Weather Battery Disconnect

Build & Price

Options

(MANDATORY) Truma Combi Comfort Plus: High Efficiency LP Water Heater/Furnace Combo (Truma Gold Standard)
(MANDATORY) Furrion Chill Cube: Energy Efficient 18,000 BTU Air Conditioner
Outside Griddle (connects to LP Quick Connect) $282
Wireless Side/Rear Observation Camera System with Monitor $1,038
Additional 270Ah 12V Battle Born® Gamechanger Lithium-ion (LiFePO4) Battery $2,994
Max Solar Package : 270Ah 12V Battle Born® Gamechanger Lithium-ion (LiFePO4) Battery, 3000W Victron® Inverter (in place of 2000W) with Cerbo GX Communication Center, REDARC® DC to DC Trailer Battery Charger, Four Additional Roof-mounted 200W Solar Panels (1,200W total), Victron® Bluetooth® MPPT Controllers, Cold-Weather Battery Disconnect $7,494

Build & Price
Total: 60,679

Packages

Standard

Overland

Features
  • 5-Sided Aluminum Frame Construction
  • XL Fresh Water Tank
  • Starlink cable prep
  • Structural Composite Flooring
  • Steel Fenders/Wheel Wells
  • Fully Adjustable Triple Solid Step™
  • Gear Box: Tongue-Mounted, Formed Aluminum, LP and Lockable Storage Box
  • Nitro-filled 16" Goodyear Wrangler Off-Road Tires - Load Range E (including spare)
  • VersaCoupler® Height-Adjustable Bolt-On Hitching System with LED Hitch Light
  • Trailblazer™ Heavy-Duty Offroad Chassis
  • Custom Aluminum Rims (including spare)
  • Laminated Azdel Onboard® Composite Rooftop (inner and outer substrates)
  • 12V Rooftop Fans
  • Thermostatically-Controlled 12V Tank Heaters (Fresh, Gray, Black)
Standard

CURT® Independent Suspension

Features
  • CURT® Independent Suspension: Heavy-Duty Coil Springs with Dual Shock Absorbers (each wheel)
Standard

EuroWindow

Features
  • Dual-Pane Caravan Windows with Integrated Thermal Shades/Screens
Standard

Off-Grid Solar

Features
  • 2000W Pure Sine Wave Inverter
  • Side and Rooftop Solar Ports
  • Dual Go Power!® 200W Rooftop Solar Panels (400W total)
  • MPPT Solar Controller
Standard

Safety First

Features
  • Rear/Side Observation Camera Prep
  • Back-up Light
  • Fire Extinguisher
  • Tire Pressure Monitoring System (TPMS)
  • High-Visibility LED Exterior Lighting
  • Smoke/CO/LP Detectors
  • Lockable TreadLock™ Parking Brake
Optional

Max Solar

Features
  • 270Ah 12V Battle Born® Gamechanger Lithium-ion (LiFePO4) Battery
  • 3000W Victron® Inverter (in place of 2000W) with Cerbo GX Communication Center
  • REDARC® DC to DC Trailer Battery Charger
  • Four Additional Roof-mounted 200W Solar Panels (1,200W total)
  • Victron® Bluetooth® MPPT Controllers
  • Cold-Weather Battery Disconnect

Warranty

At Ember, durable construction and pride of craftsmanship are injected into the DNA of every single unit that we build. Our company philosophy pledges to emphasize quality over quantity every single time and that is our guiding principle in every single production decision that we make.

Warranty Document
Warranty Badge
Floorplan image for 191MDB

Find the Overland Series 191MDB at a dealer
